ACL580
UTC Fire & Security EMEA
Neuer Artikel

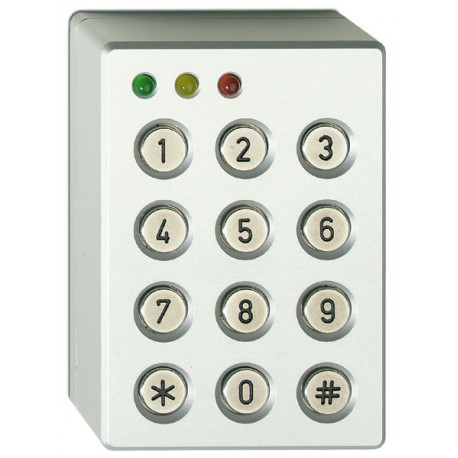

Keypads, ABS plastic housing,stainless steel,aluminium, standalone
Bestellartikel
Achtung: Letzte verfügbare Teile!
Lieferdatum
Advanced keypads for access control and home automation
These standalone robust keypads are designed to operate in both indoor and outdoor environments. ACL580 keypads are available with backlit metallic/plastic keys and in a variety of plastic or metal housing options. These keypads offer elegant looks with a host of programmable options such as backlit keys, 1000 users, invalid code lockout, 2 pushbutton inputs, support for ACL870 push buttons, adjustable unlock timer etc. Can control two doors. Available in metal or plastic and surface or flush mounted.
Allgemein | ||
---|---|---|
Benutzeroberfläche | Touch-Tasten | |
Produktlinie | Alleinstehend | |
Status-LEDs | 3 |
Kommunikation | ||
---|---|---|
Kommunikationsart | Verdrahtet |
Eingänge / Ausgänge | ||
---|---|---|
Eingänge | 2 | |
Eingabetyp | Request-To-Exit | |
Ausgänge | 2 | |
Ausgabetyp | SPDT relays, Latch or pulsed mode (01 to 99 seconds) |
Elektrische Angaben | ||
---|---|---|
Betriebsspannung | 12 / 24 VAC/VDC | |
Aktueller Verbrauch | 150 mA max. |
Physikalisch | ||
---|---|---|
Abmessungen | 84 x 108 x 40 mm | |
Formfaktor | Vertikal | |
Montage | Oberflächenmontage | |
Material | ABS |
Umweltbedingungen | ||
---|---|---|
Betriebstemperatur | -20 to +50°C | |
Relative Luftfeuchtigkeit | 95% noncondensing | |
IP Klassifizierung | IP65 |
Regulativ | ||
---|---|---|
Kompatibilität | CE | |
Zertifizierung | CE |
Advanced keypads for access control and home automation
These standalone robust keypads are designed to operate in both indoor and outdoor environments. ACL580 keypads are available with backlit metallic/plastic keys and in a variety of plastic or metal housing options. These keypads offer elegant looks with a host of programmable options such as backlit keys, 1000 users, invalid code lockout, 2 pushbutton inputs, support for ACL870 push buttons, adjustable unlock timer etc. Can control two doors. Available in metal or plastic and surface or flush mounted.
Allgemein | ||
---|---|---|
Benutzeroberfläche | Touch-Tasten | |
Produktlinie | Alleinstehend | |
Status-LEDs | 3 |
Kommunikation | ||
---|---|---|
Kommunikationsart | Verdrahtet |
Eingänge / Ausgänge | ||
---|---|---|
Eingänge | 2 | |
Eingabetyp | Request-To-Exit | |
Ausgänge | 2 | |
Ausgabetyp | 2 SPDT relays, Latch or pulsed mode (01 to 99 seconds) |
Elektrische Angaben | ||
---|---|---|
Betriebsspannung | 12 / 24 VAC/VDC | |
Aktueller Verbrauch | 150 mA max |
Physikalisch | ||
---|---|---|
Abmessungen | 120 x 90 x 40 mm | |
Formfaktor | Vertikal | |
Montage | Oberflächenmontage | |
Material | Geformtes Aluminium |
Umweltbedingungen | ||
---|---|---|
Betriebstemperatur | -20 to +50°C | |
Relative Luftfeuchtigkeit | 95% noncondensing | |
IP Klassifizierung | IP65 |
Regulativ | ||
---|---|---|
Kompatibilität | CE | |
Zertifizierung | CE |
Advanced keypads for access control and home automation
These standalone robust keypads are designed to operate in both indoor and outdoor environments. ACL580 keypads are available with backlit metallic/plastic keys and in a variety of plastic or metal housing options. These keypads offer elegant looks with a host of programmable options such as backlit keys, 1000 users, invalid code lockout, 2 pushbutton inputs, support for ACL870 push buttons, adjustable unlock timer etc. Can control two doors. Available in metal or plastic and surface or flush mounted.
Allgemein | ||
---|---|---|
Benutzeroberfläche | Touch-Tasten | |
Produktlinie | Alleinstehend | |
Status-LEDs | 3 |
Kommunikation | ||
---|---|---|
Kommunikationsart | Verdrahtet |
Eingänge / Ausgänge | ||
---|---|---|
Eingänge | 2 | |
Eingabetyp | Request-To-Exit | |
Ausgänge | 2 | |
Ausgabetyp | 2 SPDT relays, Latch or pulsed mode (01 to 99 seconds) |
Elektrische Angaben | ||
---|---|---|
Betriebsspannung | 12 / 24 VAC/VDC | |
Aktueller Verbrauch | 150 mA max |
Physikalisch | ||
---|---|---|
Abmessungen | 105 x 140 x 1.5 mm (top cover) 84 x 108 x 32 mm (bottom) | |
Formfaktor | Vertikal | |
Montage | Unterputzmontage | |
Material | Rostfreier Stahl |
Umweltbedingungen | ||
---|---|---|
Betriebstemperatur | -20 to +50°C | |
Relative Luftfeuchtigkeit | 95% noncondensing | |
IP Klassifizierung | IP65 |
Regulativ | ||
---|---|---|
Kompatibilität | CE | |
Zertifizierung | CE |
