2X-LB

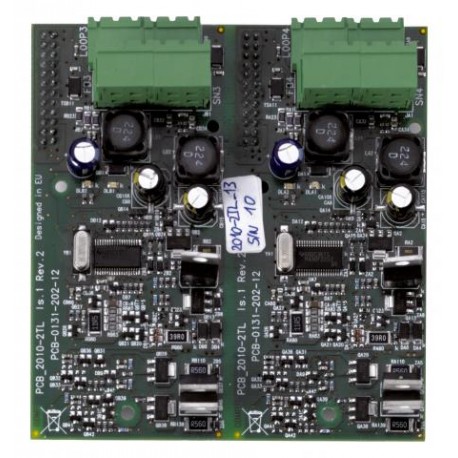

Ringkarte für 2X-F2-FB-04, Erweiterung um 2 Ringe
0 Artikel Artikel
Bestellartikel
Achtung: Letzte verfügbare Teile!
Lieferdatum
Ringkarte - Erweiterung um 2 Ringe - für 2X-F2-FB-04 / 2010-2FB - Ruhestrom (ohne Melder) / Ausgangsalarmstrom
120mA / 250mA bei 24 V / 36 V - Redundanzprozessor je Ring
The loop board allows for bigger single panel applications. Instead of using two 2-loop panels you now have only one panel to power and all the loop wiring is concentrated to one location without having to use a Firenet network.
In case you need to expand an existing system you don't need to put another panel in place. You only have to add the loop board. This makes your system more flexible and easier to expand.
Please note that only the 2-loop panel has this capability of adding the additional loop board.
The board can be plugged directly on the front of the main board of the panel on the easy to remove chassis. No additional cabling needs to be done.
Allgemein | ||
---|---|---|
Maximale Systemkapazität (Anzahl der Geräte) | bis zu 256 |
Schleife | ||
---|---|---|
Maximale Ringkapazität | 2 | |
Typ und Klasse | Recommended 2 core 1.5 mm² twisted pair ; Length: 56 ohm / 1 µF max. 2 km |
Zoniert | ||
---|---|---|
Maximale Meldergruppenkapazität | bis zu 256 |
Ausgang | ||
---|---|---|
Ausgabetyp und -Klasse | Loops: 2, 250 mA / 29 VDC (29 to 36 VDC ) | |
Programmierbar | 4,700 mA / 19.5 to 28 VDC (24 VDC nominal), supervised | |
Abschluss | 15 kohm |
Physikalisch | ||
---|---|---|
Formfaktor | Groß | |
Abmessungen | 127 x 55 x 152 mm (W x H x D) | |
Nettogewicht | 120 g | |
Liefergewicht | 192 g | |
Montage | Oberflächenmontage |
Umweltbedingungen | ||
---|---|---|
Betriebstemperatur | -8 to +42°C | |
Lagertemperatur | -10 to +50°C | |
Relative Luftfeuchtigkeit | 95% max. noncondensing |
Regulativ | ||
---|---|---|
Kompatibilität | CPD, RoHS, WEEE | |
Zertifizierung | EN54-13, EN54-2, EN54-21, EN54-4 |
